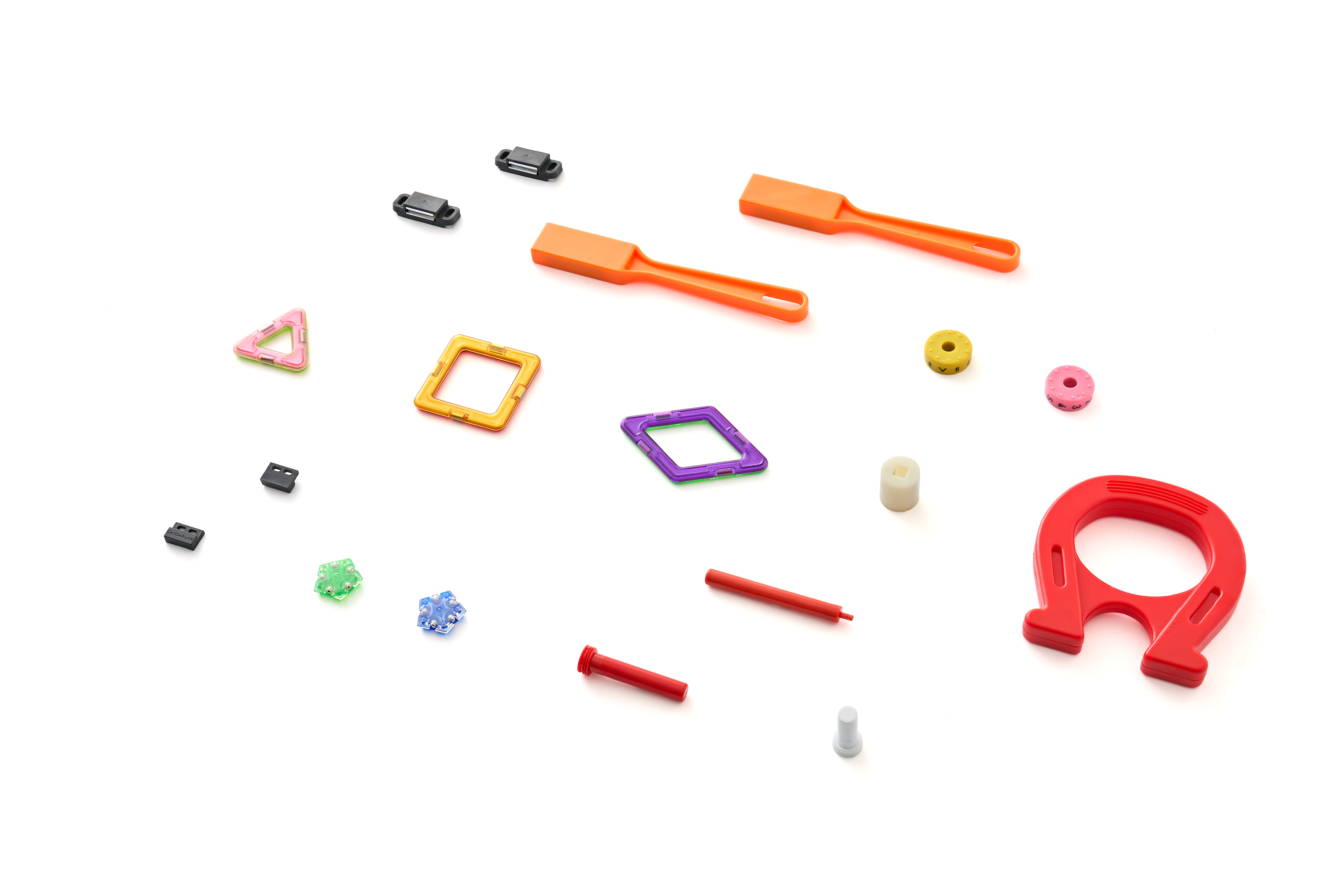

Ultrasonically Welded Magnets

Ultrasonically welded magnets are often used when finished magnets or magnetic assemblies need to be fixed inside plastic components with controlled positioning and a clean assembly process.

The plastic structures provide retention, enclosure, or positioning support, while the magnetic components provide holding force, sensing function, magnetic positioning, or interaction with another magnetic component.

Ultrasonically welded magnets are usually considered when finished magnets or magnetic assemblies need to be assembled into molded plastic parts and then retained by welded plastic features. This method is suitable when the plastic structure can be designed to hold, cover, or enclose the magnetic components after placement.

This approach is often used when adhesive bonding is not preferred. Compared with gluing, ultrasonic welding can avoid adhesive curing time, glue overflow, and long-term bonding concerns caused by temperature, moisture, or surface contamination.

Ultrasonic welding may also be more suitable than simple press fitting when the magnetic components need a more defined retaining structure. Instead of relying only on interference or compression, the plastic part can use a cover, edge, rib, housing, or welded feature to help keep them in place.

This method is useful when the final component requires controlled positioning, clean appearance, and stable assembly in repeated production. It is especially suitable for plastic magnetic components where the magnetic component position, plastic welding area, and final working surface are already clearly defined.

However, ultrasonically welded magnets are not suitable for every design. The plastic material must be weldable, the welded features must be properly designed, and the magnetic components should be protected from movement, excessive pressure, or positioning errors during the welding process. For early prototypes or designs that may still change, gluing, press fitting, or simpler mechanical retention may offer more flexibility.

Ultrasonic welding is a post-molding assembly method used to retain or enclose finished magnets or magnetic assemblies inside molded plastic parts. Its main feature is that the magnetic components are fixed by welded plastic features, rather than adhesive bonding, interference fit, molded covering, or direct welding of the magnets themselves.

Other plastic integration methods may be more suitable depending on the product structure, assembly process, plastic material, production volume, and reliability requirements. The table below shows how these methods differ from ultrasonic welding.

In practical projects, ultrasonic welding may be combined with other retaining features. For example, a plastic pocket may position the magnets or magnetic assemblies before welding, while a welded cover, rib, or edge creates the final retention structure. The final choice should be based on magnetic component size, plastic material, welding structure, working distance, assembly process, and the required reliability of the finished component.

Ultrasonically welded magnets should be designed by considering the magnetic components, plastic material, welding structure, and final magnetic function together. A reliable design depends not only on weld strength, but also on magnet positioning, working distance, and whether the plastic structure can retain the magnets or magnetic assemblies without damaging them during assembly.

• Magnet or Magnetic Assembly Design: The magnetic component may be a single magnet, multiple magnets, or a pre-assembled magnetic structure. Its size, shape, coating, tolerance, and working surface should be reviewed together with the plastic part before welding.
• Plastic Material Compatibility: Ultrasonic welding depends strongly on the plastic material. The plastic parts should be suitable for welding, and the material choice should match the required weld strength, dimensional stability, and working environment.
• Weld Joint and Plastic Feature Design: The weld joint, cover, rib, edge, housing, or retaining feature should be designed to hold or enclose the magnetic components after assembly. Proper plastic feature design helps create stable retention without relying only on adhesive or interference fit.
• Magnet Pocket and Positioning: The magnets or magnetic assemblies should be accurately positioned before welding. Magnet pockets, stop surfaces, ribs, or locating features can help control the final position, working distance, and assembly consistency.
• Ultrasonic Welding Parameters: Welding energy, pressure, time, amplitude, and fixture support can all affect the final result. Excessive welding conditions may damage plastic features or disturb the magnetic component position, while insufficient welding may lead to weak retention.
• Magnetization Direction: The magnetization direction and working surface should be confirmed before welding. After the magnetic components are retained or enclosed by welded plastic features, rework may be difficult and the magnetic poles may no longer be visible.
• Final Working Distance: Plastic covers, welded edges, housings, or retaining structures may increase the distance between the magnetic components and the working surface. This distance should be considered early, especially for sensing, positioning, holding force, or magnetic interaction applications.

Ultrasonically welded magnets can provide clean and stable retention, but the process also introduces practical challenges. Most issues are related to plastic welding quality, magnetic component positioning, working distance, and the interaction between welding conditions and the assembled magnets or magnetic assemblies.

• Magnetic Component Movement During Welding: Finished magnets or magnetic assemblies may shift if they are not properly located before welding. Even small movement can affect the final working surface, sensing distance, magnetic position, or assembly consistency.
• Weak Weld Strength: If the plastic material, weld joint, energy director, or welding parameters are not suitable, the welded structure may not provide enough retention. Weak welding can lead to loose magnetic components, poor enclosure, or reduced reliability during use.
• Plastic Flash or Surface Defects: Ultrasonic welding may create flash, marks, deformation, or uneven surfaces around the welded area. This can affect the appearance, fit, or usability of the finished plastic magnetic component.
• Vibration, Pressure, or Local Heat Effects: Ultrasonic welding involves high-frequency vibration, pressure, and localized heat in the plastic structure. If the magnetic component is not properly supported, these conditions may cause position shift, coating damage, edge damage, or stress on nearby plastic features.
• Final Magnetic Force or Sensing Distance Changes: Plastic covers, welded ribs, housings, or retaining features may increase the distance between the magnetic component and the working surface. If this distance is not considered early, the final holding force, sensing signal, or magnetic interaction may be weaker than expected.
• Hidden Magnetization Direction: After welding, the magnets may be enclosed or covered by plastic features, making the magnetic poles and working surface less visible. Clear marking, assembly control, and inspection are important before welding.
• Inconsistent Welding Quality in Mass Production: A design that works in samples may still need process control before repeated production. Plastic material variation, fixture support, welding energy, part tolerance, and magnetic component placement can all affect final consistency.

SDM supports ultrasonically welded magnet projects from the magnet and plastic assembly side. For this type of component, the magnetic parts should not be treated only as standard magnets, because their size, coating, tolerance, magnetization direction, working surface, and assembly position can all affect the final welded structure.

In the early design stage, we can help review magnet material selection, magnetic assembly design, coating options, dimensional requirements, magnetization direction, and the relationship between the magnetic component and surrounding plastic structure. This is especially important when the magnets or magnetic assemblies need to be retained by a cover, housing, rib, edge, or welded plastic feature.

For custom ultrasonically welded magnet projects, customers can provide magnet drawings, assembly drawings, plastic part drawings, 3D models, samples, magnet pocket dimensions, cover thickness, welding structure, working temperature, magnetic function, and expected production quantity. If the design is still under development, information such as holding force, sensing distance, positioning requirement, assembly method, and working environment can also help us suggest a more practical magnet solution.

Our role is to help make the magnetic component suitable for the final plastic integrated assembly. By reviewing the magnet design before production, customers can reduce avoidable problems such as unclear magnetization direction, unsuitable coating selection, excessive working distance, poor dimensional matching, or magnetic component movement during welding.
